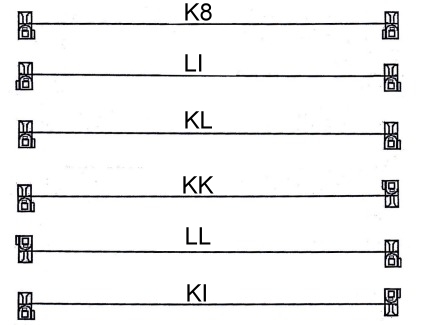

FLAT CABLE WITH 2* IDC SOCKETS WITHOUT STRAIN RELIEFS:

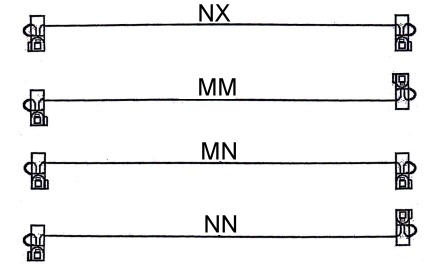

FLAT CABLE WITH 2* IDC SOCKETS WITH STRAIN RELIEFS:
ORDERING INFORMATION:
1.FLAT CABLE TYPE:
“KG” 0.635MM PITCH FLAT CABLE WITH 2* 1.27MM x 1.27MM IDC SOCKETS
“KE” 0.635MM PITCH FLAT CABLE WITH 2*1.27MM x 2.54MM IDC SOCKETS
“KB” 1.00MM PITCH FLAT CABLE WITH 2* 2.00MM PITCH IDC SOCKETS
“KA” 1.27MM PITCH FLAT CABLE WITH 2* 2.54MM PITCH IDC SOCKETS
2. NO. OF CONTACTS:
06~80 (FOR KG), 10~100 (FOR KE), 06-68 (FOR KB), 06~64 (FOR KA)
3. CONSTRUCTION TYPE:
K8, LI, KL, KK, LL, KI, NX, MM, MN, NN
4. LENGTH IN CM (CENTIMETERS)
