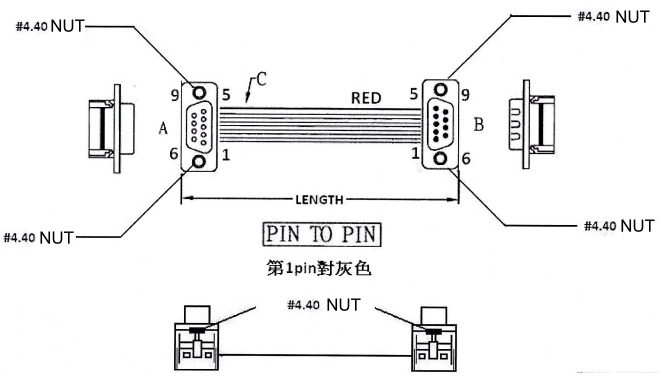

1.27MM PITCH FLAT CABLE WITH 9, 15, 25, 37 PIN D-SUB. FEMALE TO FEMALE CONNECTORS:
ORDERING INFORMATION:
1. NO. OF CONTACTS:
09, 15, 25, 37
2. CONSTRUCTION TYPE:
FG
3. LENGTH IN CM (CENTIMETERS)
4. COLOR OF TWO IDC CONNECTORS:
“N” WITH UNC 4-40 NUTS
“W” WITHOUT NUTS
– Page 5 –

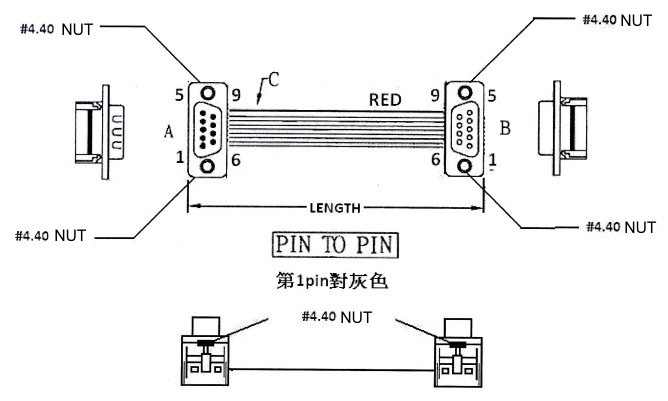

1.27MM PITCH FLAT CABLE WITH 9, 15, 25, 37 PIN D-SUB. FEMALE TO MALE CONNECTORS:
ORDERING INFORMATION:
1. NO. OF CONTACTS:
09, 15, 25, 37
2. CONSTRUCTION TYPE:
FB
3. LENGTH IN CM (CENTIMETERS)
4. COLOR OF TWO IDC CONNECTORS:
“N” WITH UNC 4-40 NUTS
“W” WITHOUT NUTS
– Page 6 –

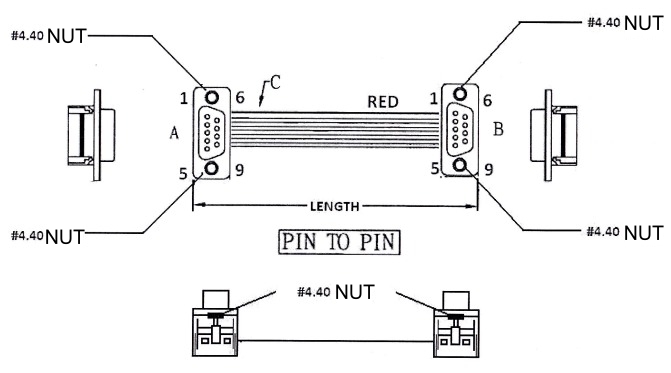

1.27MM PITCH FLAT CABLE WITH 9, 15, 25, 37 PIN D-SUB. MALE TO FEMALE CONNECTORS:
ORDERING INFORMATION:
1. NO. OF CONTACTS:
09, 15, 25, 37
2. CONSTRUCTION TYPE:
FD
3. LENGTH IN CM (CENTIMETERS)
4. COLOR OF TWO IDC CONNECTORS:
“N” WITH UNC 4-40 NUTS
“W” WITHOUT NUTS
