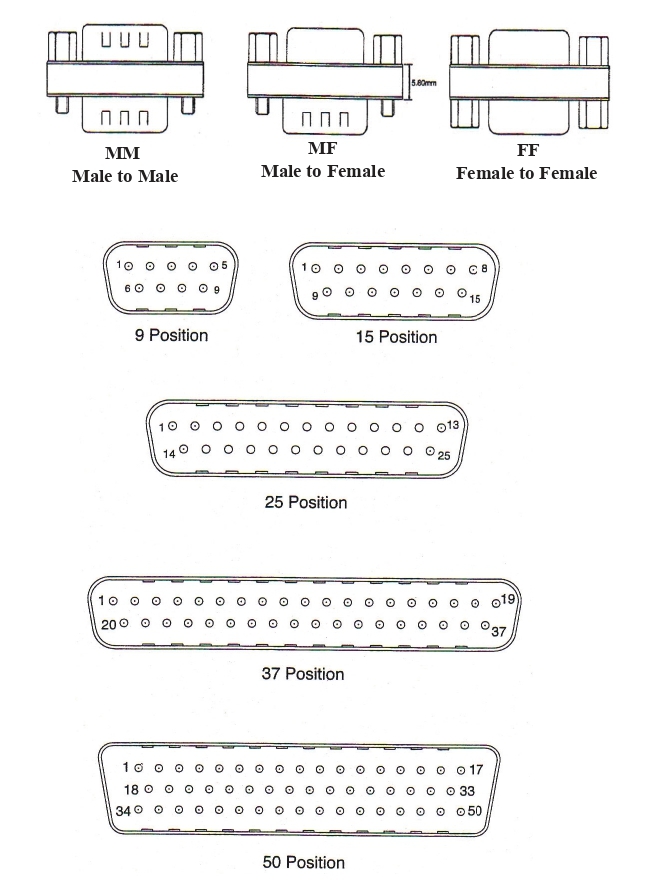

ALL METAL D-SUB. MINI GENDER CHANGER
SPECIFICATIONS
Current Rating: 5.0 Amperes
Contact Resistance: 15mΩ Max. 1KHz 20mA Max
Insulation Resistance: 5000MΩ Min. at 500VDC
Dielectric Voltage: 1000V AC at 1 Minute
Operating Temperature: -55ºc to +125ºc
MATERIALS
Insulator: PBT, UL94V-0 Rated
Contact: Brass contacts are Gold plated over Nickel
*RoHS & REACH compliant.
ORDERING INFORMATION:
1. CONNECTOR AT SIDE 1:
“09” DB9
“15” DB15
“25” DB25
“37” DB37
2. CONNECTOR AT SIDE 2:
“09” DB9
“15” DB15
“25” DB25
“37” DB37
3. GENDER CHANGE TYPE:
“FF” FEMALE TO FEMALE WITH HEXSCREWS
& HEXNUTS
“MF” MALE TO FEMALE WITH HEXSCREWS
“MM” MALE TO MALE WITH HEXSCREWS
NOTE: P/N FOR DB50 IS AD50D-50xx

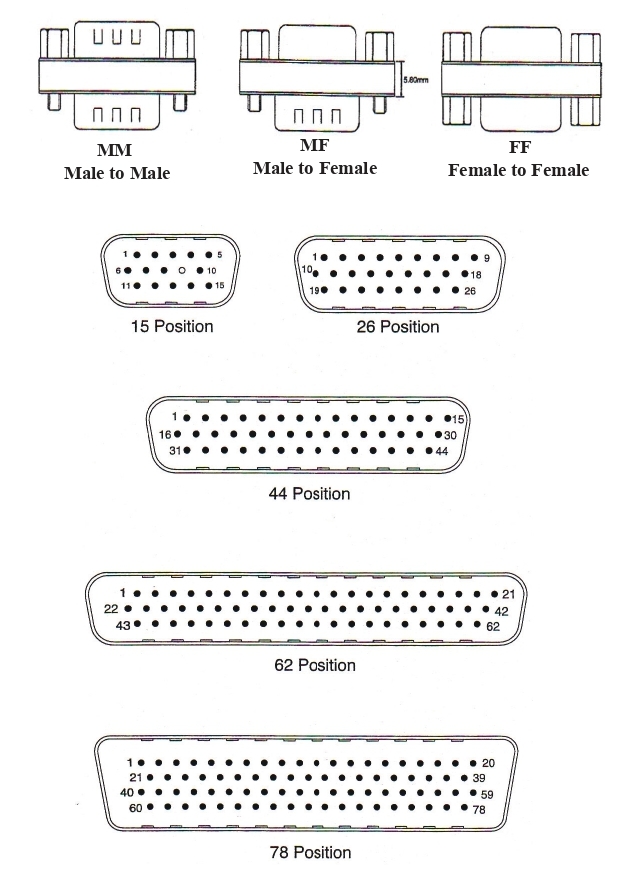

ALL METAL HD D-SUB. MINI GENDER CHANGER
SPECIFICATIONS
Current Rating: 5.0 Amperes
Contact Resistance: 15mΩ Max. 1KHz 20mA Max
Insulation Resistance: 5000MΩ Min. at 500VDC
Dielectric Voltage: 1000V AC at 1 Minute
Operating Temperature: -55ºc to +125ºc
MATERIALS
Insulator: PBT, UL94V-0 Rated
Contact: Brass contacts are Gold plated over Nickel
*RoHS & REACH compliant.
ORDERING INFORMATION:
1. CONNECTOR AT SIDE 1:
“15” HD15
“26” HD26
“44” HD44
“62” HD62
“78” HD78
2. NO. OF CONTACTS:
“H” FULL PINS (for ALL POSITIONS)
“E” #9 EMPTY (for HD15 ONLY)
3. CONNECTOR AT SIDE 2:
“15” HD15
“26” HD26
“44” HD44
“62” HD62
“78” HD78
4. GENDER CHANGE TYPE:
“FF” FEMALE TO FEMALE WITH HEXSCREWS
& HEXNUTS
“MF” MALE TO FEMALE WITH HEXSCREWS
“MM” MALE TO MALE WITH HEXSCREWS
