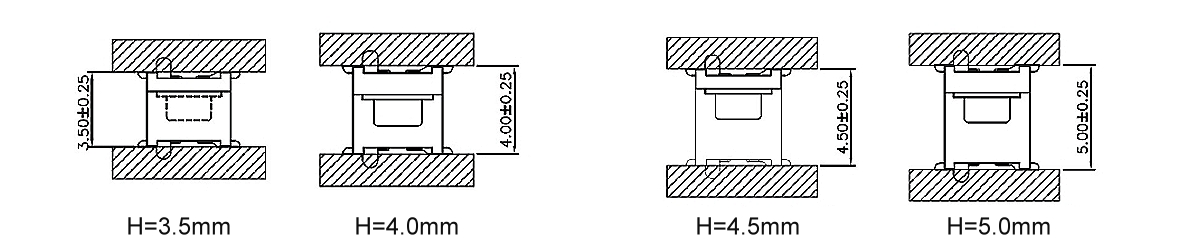

SERIES | PITCH | TYPE | MALE (M) + FEMALE (F) MATED HEIGHT=H (UNIT: mm) |
050Nx | 0.50mm | (M) SMT | 1.6, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 12.0, 12.5, 13.0, 13.5, 14.0, 14.5, 15.0, 15.5 |
050Gx | 0.50mm | (F) SMT | ditto |
080Mx | 0.80mm | (M) SMT | 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 8.85, 9.0, 10.0, 11.0, 12.0, 13.0, 14.0, 15.0, 16.0, 17.0, 18.0 |
080Fx | 0.80mm | (F) SMT | ditto |
12Exx 127GA | 1.27x1.27 1.27x1.27 | (M) SMT (F) SMT | 6.6, 7.8, 12.2, 10.0, 11.7, 16.6, 16.2, 15.1, 10.4, 13.2, 10.6, 11.3, 12.5, 12.0, 15.2, 19.9, 11.4, 11.2, 18.3, 14.5, 18.6, 19.6 |
12Exx 127BT | 1.27x1.27 1.27x1.27 | (M) SMT (F) DIP | 6.45, 7.65, 12.05, 9.85, 11.55, 16.45, 16.05, 14.95, 10.25, 13.05, 10.45, 11.15, 12.35, 11.85, 15.05, 19.75, 11.25, 11.05, 18.15, 14.35, 18.45, 19.45 |
12Dxx 127BT | 1.27x1.27 1.27x1.27 | (M) DIP (F) DIP | 6.05, 7.65, 11.85, 9.65, 11.35, 16.25, 15.85, 14.75, 10.05, 12.85, 10.25, 10.95, 12.15, 11.65, 14.85, 19.55, 11.05, 10.85, 17.95, 14.15, 18.25, 19.25 |
12Dxx 127GA | 1.27x1.27 1.27x1.27 | (M) DIP (F) SMT | 6.2, 7.8, 12.0, 9.8, 11.5, 16.4, 16.0, 14.9, 10.2, 13.0, 10.4, 11.1, 12.3, 11.8, 15.0, 19.7, 11.2, 11.0, 18.1, 14.3, 18.4, 19.4 |
300Mx | 3.00mm | (M) DIP | 25.28 (300MS Straight DIP) & (300MR R/A DIP) |
300Fx | 3.00mm | (F) DIP | 25.28 (300FS Straight DIP) & (300FR R/A DIP) |
