PART NO. | PITCH | CONTACT TYPE | NO.OF CONTACTS | INSULATOR COLOR |
100XE-xxxSxxx | 1.00mm | PCI-E GEN3 Straight DIP | 036, 064, 098, 164 | black, white |
100EK-xxxSxxB | 1.00mm | PCI-E GEN3 Right angle DIP | 036, 064, 098, 164 | black |
100XG-xxxSxxB-x | 1.00mm | PCI-E Straight SMT | 036, 064, 098, 164 | black |
100G4-xxxSxxB-x | 1.00mm | PCI-E GEN4 Straight SMT | 036, 064, 098, 164 | black |
100G5-xxxSxxB-x | 1.00mm | PCI-E GEN5 Straight SMT | 036, 064, 098, 164 | black |
12P32-xxxSxxB | 1.27mm | PCI Straight DIP | 010~120 | black |
12P03-xxxSxxB | 1.27mm | PCI Straight SMT | 010~132 | black |

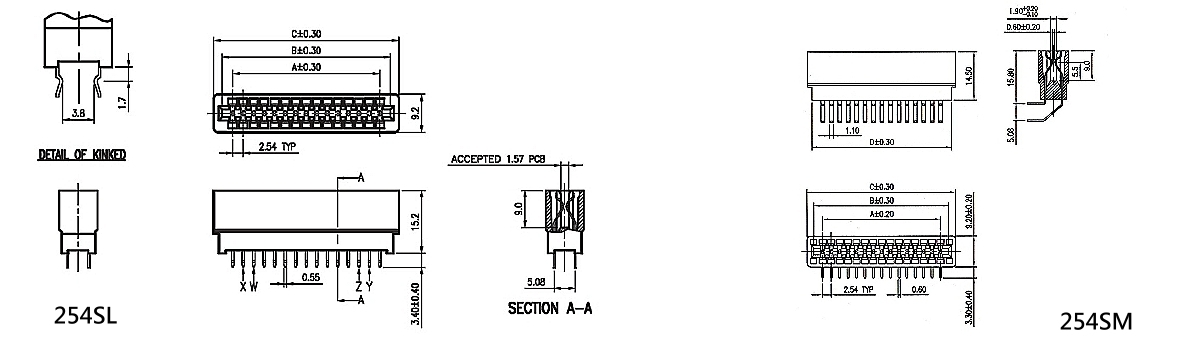

254SL-xxxSB | 2.54mm | Straight DIP | 006~096 | black |
254SM-xxxSB | 2.54mm | Right angle DIP | 006~104 | black |
ORDERING INFORMATION:
P/N 100XE-xxxSxxB
P/N 100EK-xxxSxxB
P/N 100XG-xxxSxxB-x
P/N 12P32-xxxSxxB
1. NO. OF CONTACTS:
010, 012… (see above)
2. CONTACT FINISH:
“S01″ FLASH SELECTIVE GOLD
“S05″ 5 MICROINCH SELECTIVE GOLD
“S10” 10 MICROINCH SELECTIVE GOLD
“S15” 15 MICROINCH SELECTIVE GOLD
“S30” 30 MICROINCH SELECTIVE GOLD
3. INSULATOR COLOR:
“B” BLACK
“W” WHITE
P/N 254SL-xxxSB
1. NO. OF CONTACTS:
006, 008… (see above)
2. INSULATOR COLOR:
“B” BLACK
