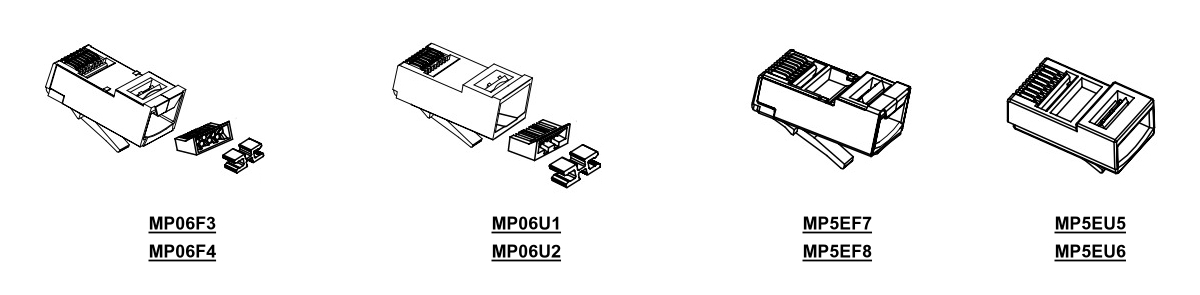

PART NO. | TYPE | PRODUCT DESCRIPTION |
MP5EF7-88Rxx | 8P8C | Cat. 5e fully shielded modular plug for round cable & stranded wires |
MP5EF8-88Rxx | 8P8C | Cat. 5e fully shielded modular plug for round cable & solid wires |
MP5EU5-88Rxx | 8P8C | Cat. 5e unshielded modular plug for round cable & stranded wires |
MP5EU6-88Rxx | 8P8C | Cat. 5e unshielded modular plug for round cable & solid wires |
MP06F3-88RxxA24 | 8P8C | Cat. 6 fully shielded modular plug for round cable & stranded wires |
MP06F4-88RxxA24 | 8P8C | Cat. 6 fully shielded modular plug for round cable & solid wires |
MP06U1-88RxxA24 | 8P8C | Cat. 6 unshielded modular plug for round cable & stranded wires |
MP06U2-88RxxA24 | 8P8C | Cat. 6 unshielded modular plug for round cable & solid wires |
MP6A05-88RxxB24 | 8P8C | Cat. 6A fully shielded modular plug for round cable & stranded wires |
MP6A06-88RxxB24 | 8P8C | Cat. 6A fully shielded modular plug for round cable & solid wires |
MP6A15-88RxxB24 | 8P8C | Cat. 6A unshielded modular plug for round cable & stranded wires |
MP6A16-88RxxB24 | 8P8C | Cat. 6A unshielded modular plug for round cable & solid wires |
MP0701-88RxxB24 | 8P8C | Cat. 7 fully shielded modular plug for round cable & stranded wires |
MP0702-88RxxB24 | 8P8C | Cat. 7 fully shielded modular plug for round cable & solid wires |
Part No. of most popular Cat. 5e, 6, 6A, 7 modular plugs:
P/N MP5E**-88Rxx (** = F7, F8, U5, U6) (xx = 03, 06, 15, 30, 50 microinch gold plated contacts)
P/N MP06**-88RxxA24 (** = F3, F4, U1, U2) (xx = 03, 06, 15, 30, 50 microinch gold plated contacts)
P/N MP6A**-88RxxB24 (** = 05, 06, 15, 16) (xx = 03, 06, 15, 30, 50 microinch gold plated contacts)
P/N MP07**-88RxxB24 (** = 01, 02) (xx = 03, 06, 15, 30, 50 microinch gold plated contacts)

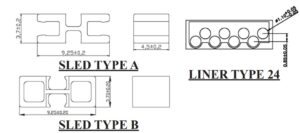

A24 = SLED TYPE A & LINER TYPE 24
B24 = SLED TYPE B & LINER TYPE 24
