METAL HOOD FOR D-SUB. CONNECTORS
ORDERING INFORMATION:
1. HOOD TYPE:
DV, DA, DH, DR
2 NO. OF POSITIONS:
09, 15. 25, 37, 50
3. DIMENSION OF CABLE ENTRY HOLE:
FOR Dx-09: 4, 6, 6.5, 7. 7.5, 8, 8.5, 9
FOR Dx-15: 6, 7, 7.5. 8, 9, 10, 12
FOR Dx-25: 7, 8, 9, 10, 11, 12, 13, 14.5
FOR Dx-37: 10. 12. 14. 16
FOR Dx-50: 10, 13, 14.5. 16. 18
NOTE: P/N DV-xxG = DV-xx WITH GROMMET
P/N DA-xxG = DA-xx WITH GROMMET
P/N DH-xxG= DH-xx WITH GROMMET
P/N DR-xxG = DR-xx WITH GROMMET

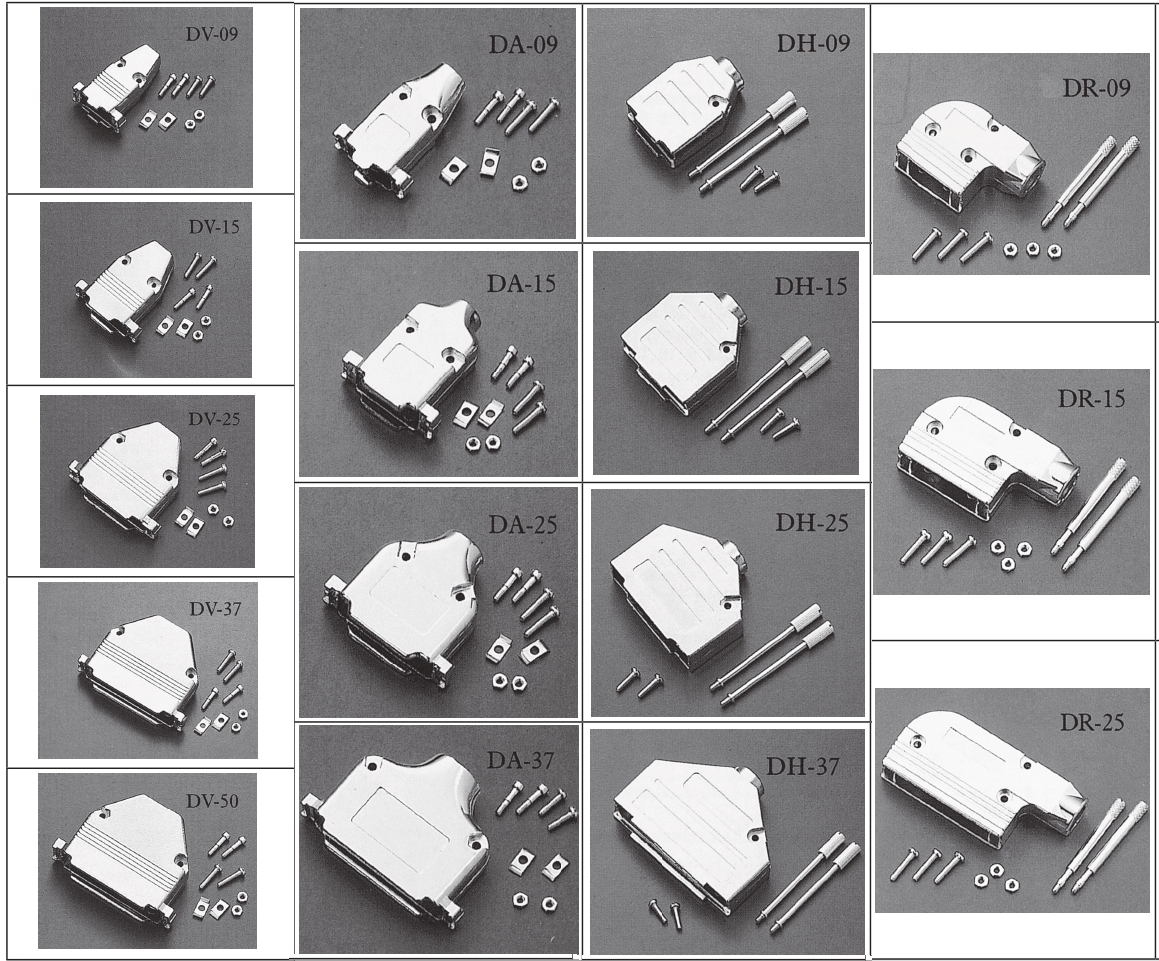

STANDARD TYPES
DV-09/7
DV-15/10
DV-25/10
DV-37/12
DV-50/14.5
DA-09/7
DA-15/10.5
DA-25/10
DA-37/13.5
DH-xx/6, 7.5, 9,11,13,16
DR- 09/11
DR-15/11
DR-25/11
